Scale drum TTR ERM 2400- ID 1144140-08Scale drum with centering collar for an incremental built-in encoder with magnetoresistive scanning

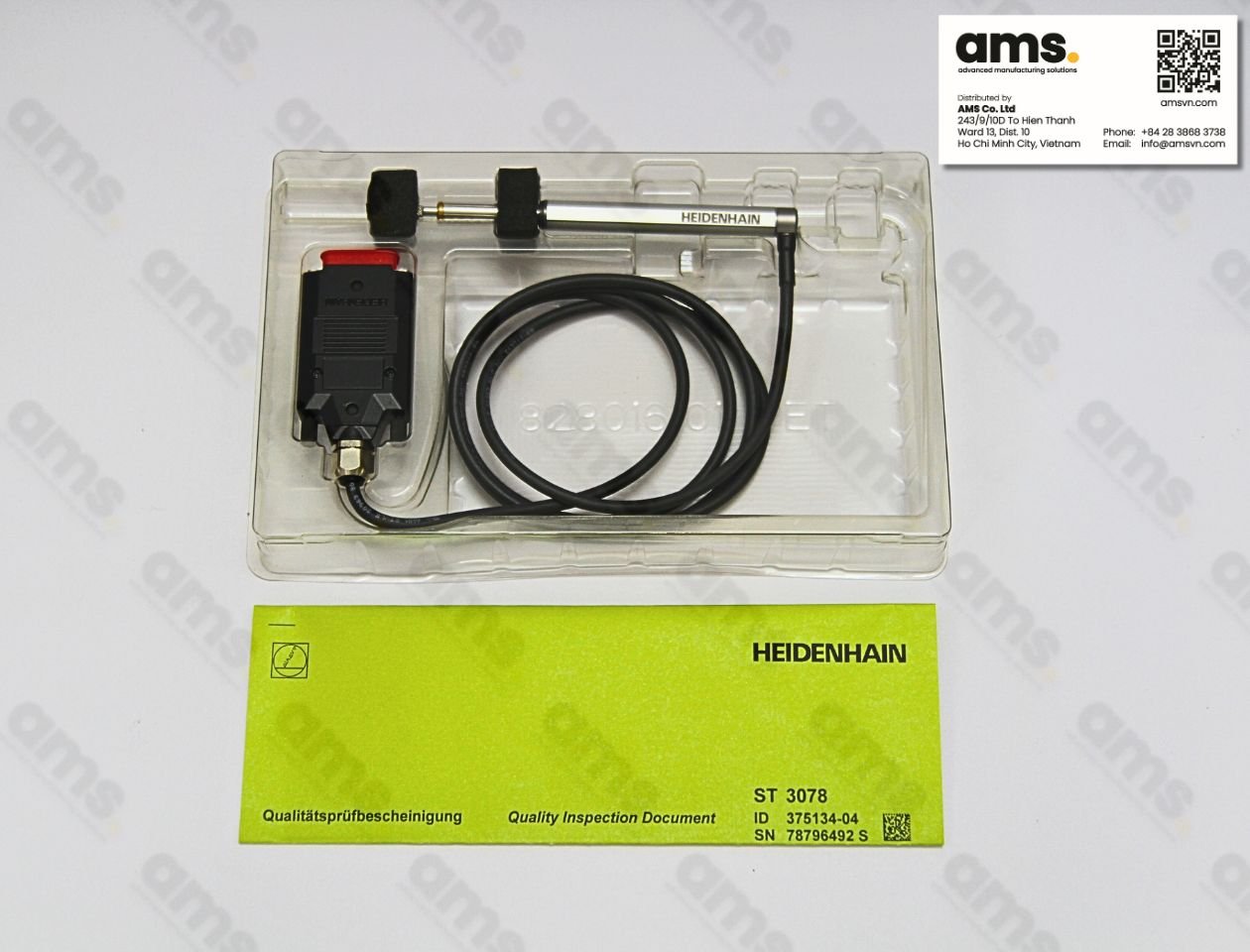

Incremental length gauge - ST 3078, ID 375134-04Scale drum with centering collar for an incremental built-in encoder with magnetoresistive scanning
- High system accuracy: ±1 µm
- Very rugged design
- Compact design for limited installation space
- Various plunger actuation possibilities
- Highly durable ball-bearing guide
- Measuring range of up to 30 mm
- Interfaces: 1 VPP, TTL
- Protection rating of up to IP67

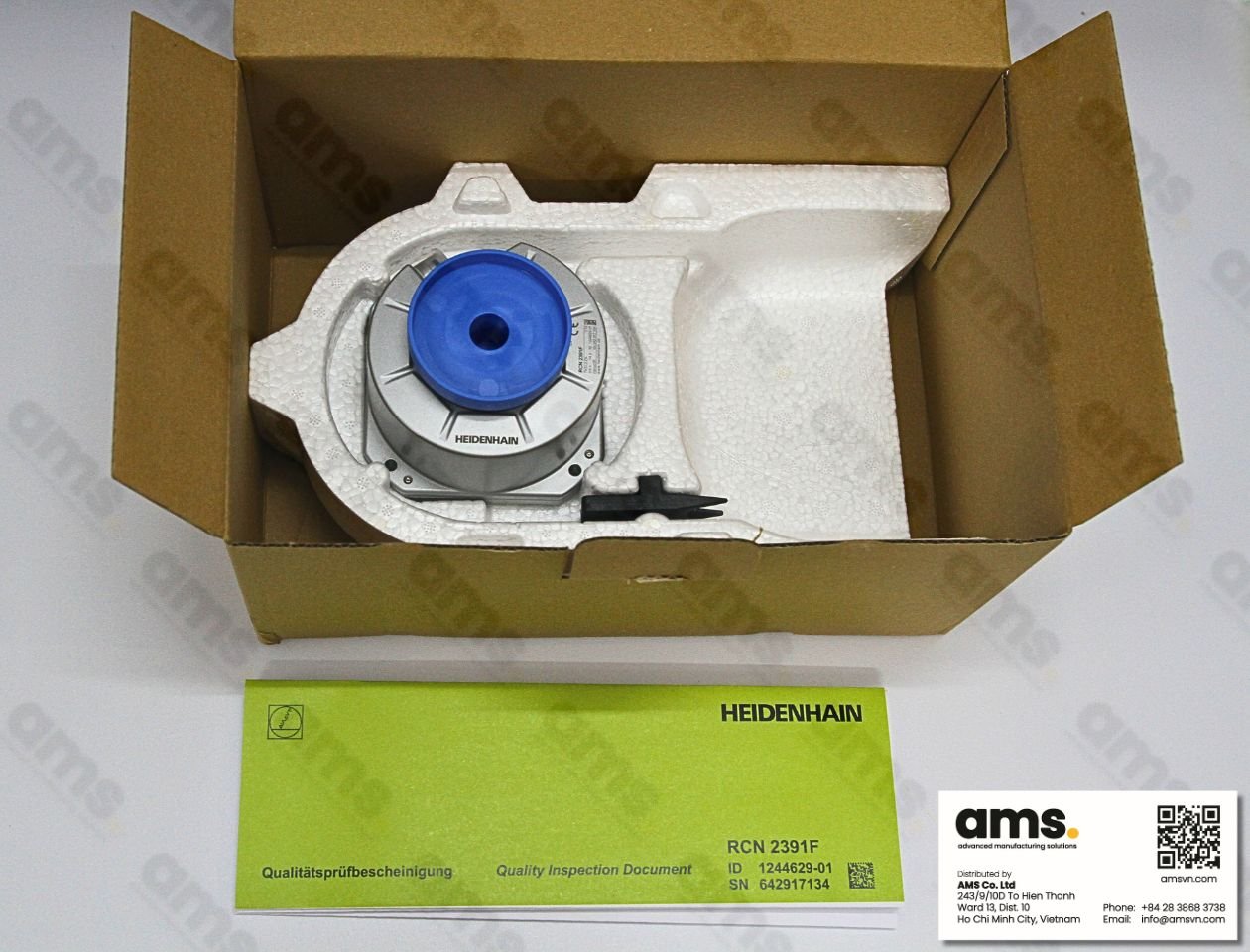

Absolute angle encoder - RCN 2391F, ID 1244629-01Absolute angle encoder (singleturn) with integral bearing and integrated stator coupling
- System accuracy of ±2” / ±4”
- Integrated stator coupling
- Hollow through shaft with ∅ 20 mm / ∅ 35 mm
- Position values per revolution: 26 bits / 28 bits
- High permissible shaft speeds
- Integrated temperature sensor
- Interfaces: EnDat 2.2, Fanuc Serial Interface αi, Mitsubishi high speed interface
- Available with functional safety

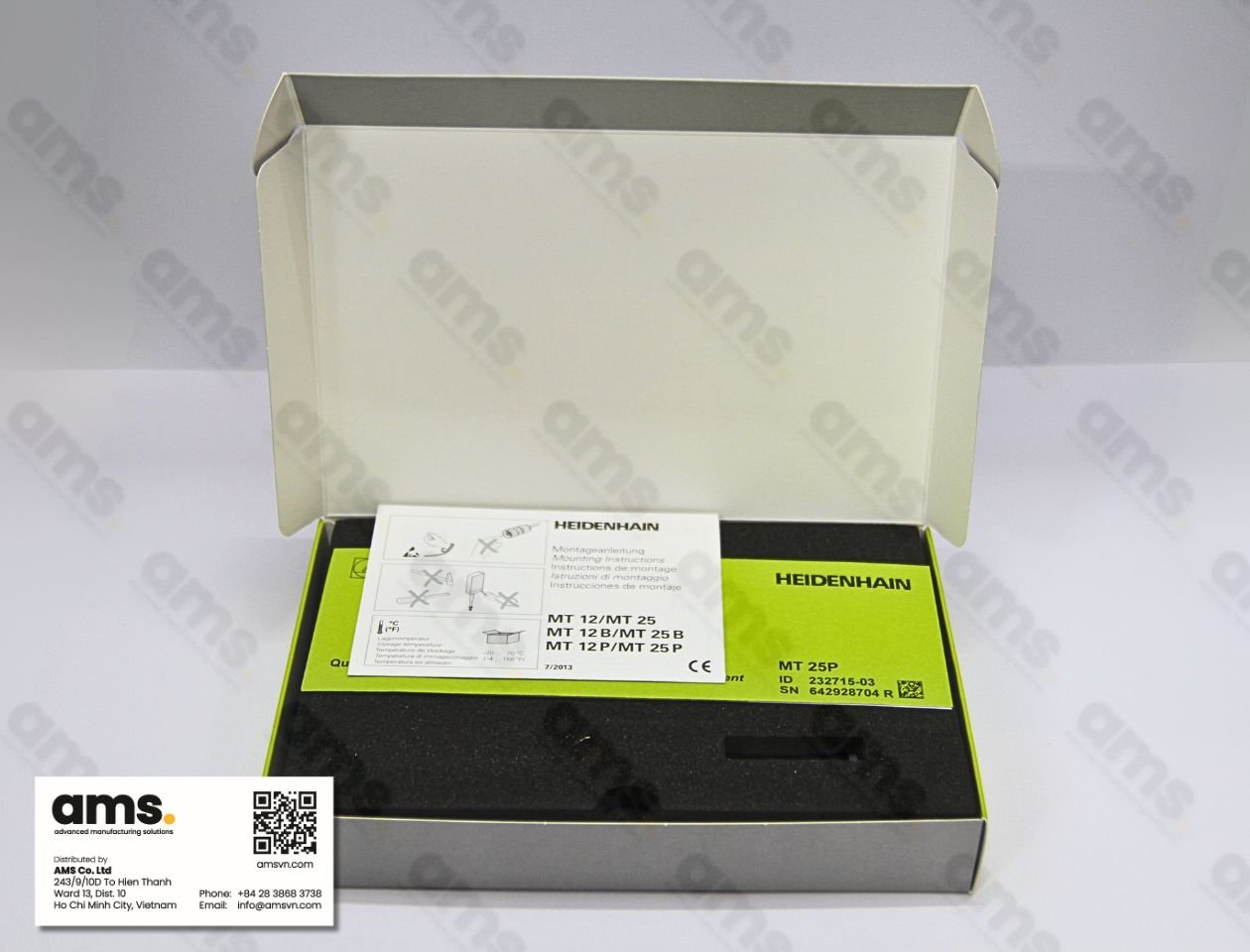

Incremental length gauge - MT 25P, ID 232715-03Incremental length gauge HEIDENHAIN-METRO
- High repeatability
- Very high system accuracy of down to: ±0.2 µm
- Ball-bearing-guided and zero-backlash plunger
- Variant with reduced gauging force
- Very long measuring ranges of up to 100 mm
- Interfaces: 1 VPP, TTL, 11 µAPP
- Protection rating of up to IP67

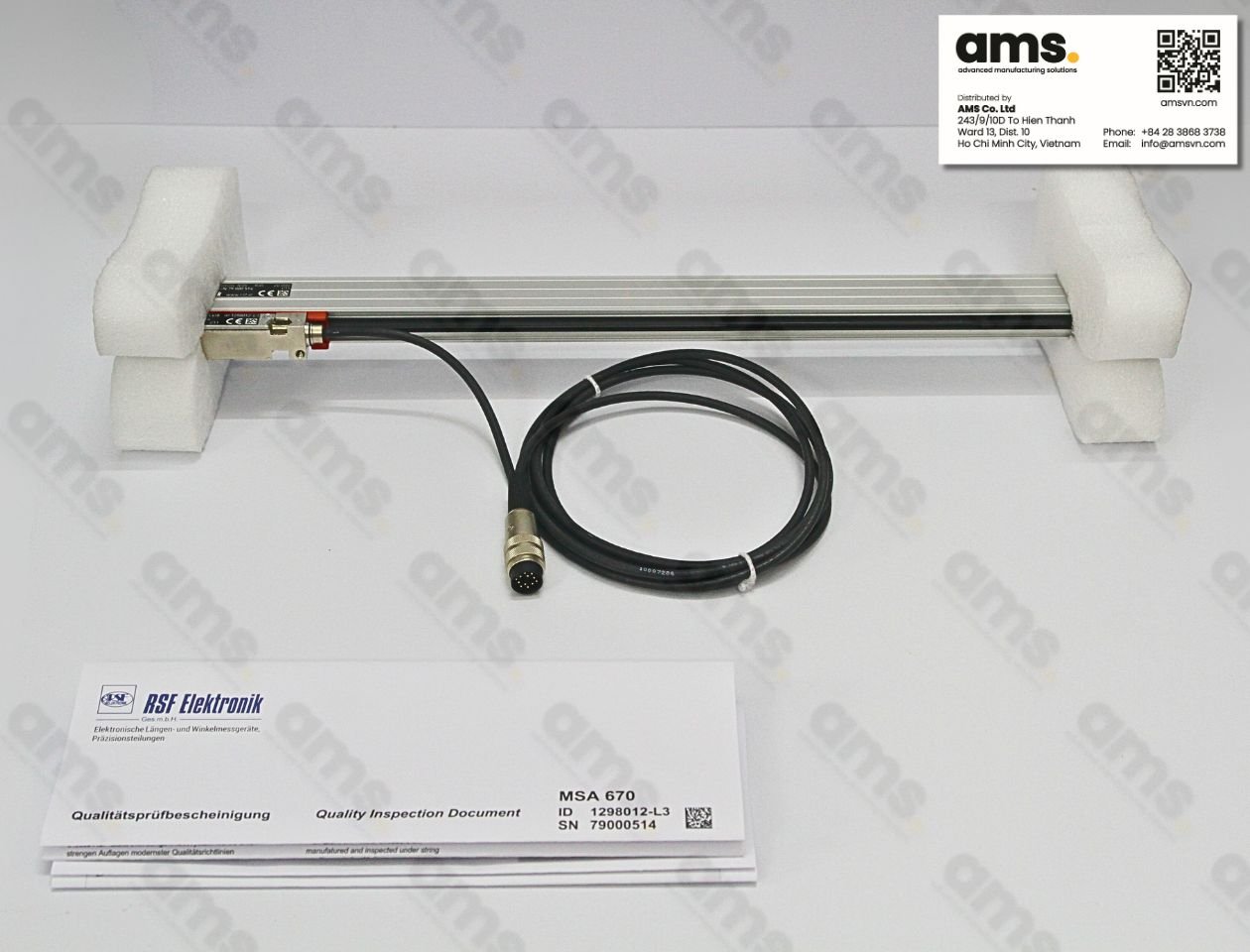

MSA670, ID 1298012-L3
- Small cross-sectional profile
- Scale unit: glass
- Grating period: 20 µm
- Fixed connecting cable

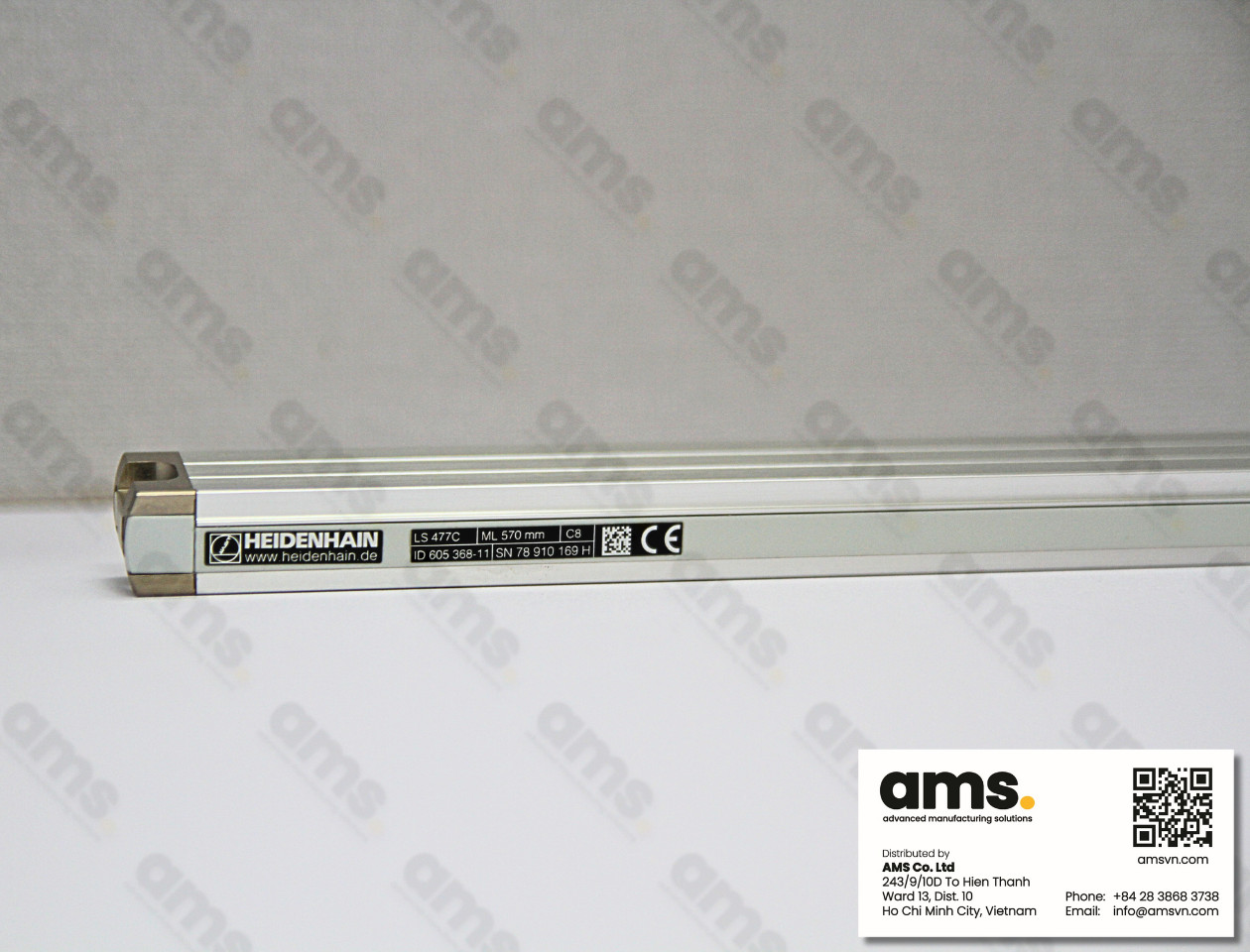

Incremental sealed linear encoder - LS 477C, ID 605368-11Incremental sealed linear encoder with small cross section
- For linear axes up to 2040 mm long
- Compact design for limited installation space
- Particularly easy installation with mounting rail
- Interfaces: 1 VPP and TTL

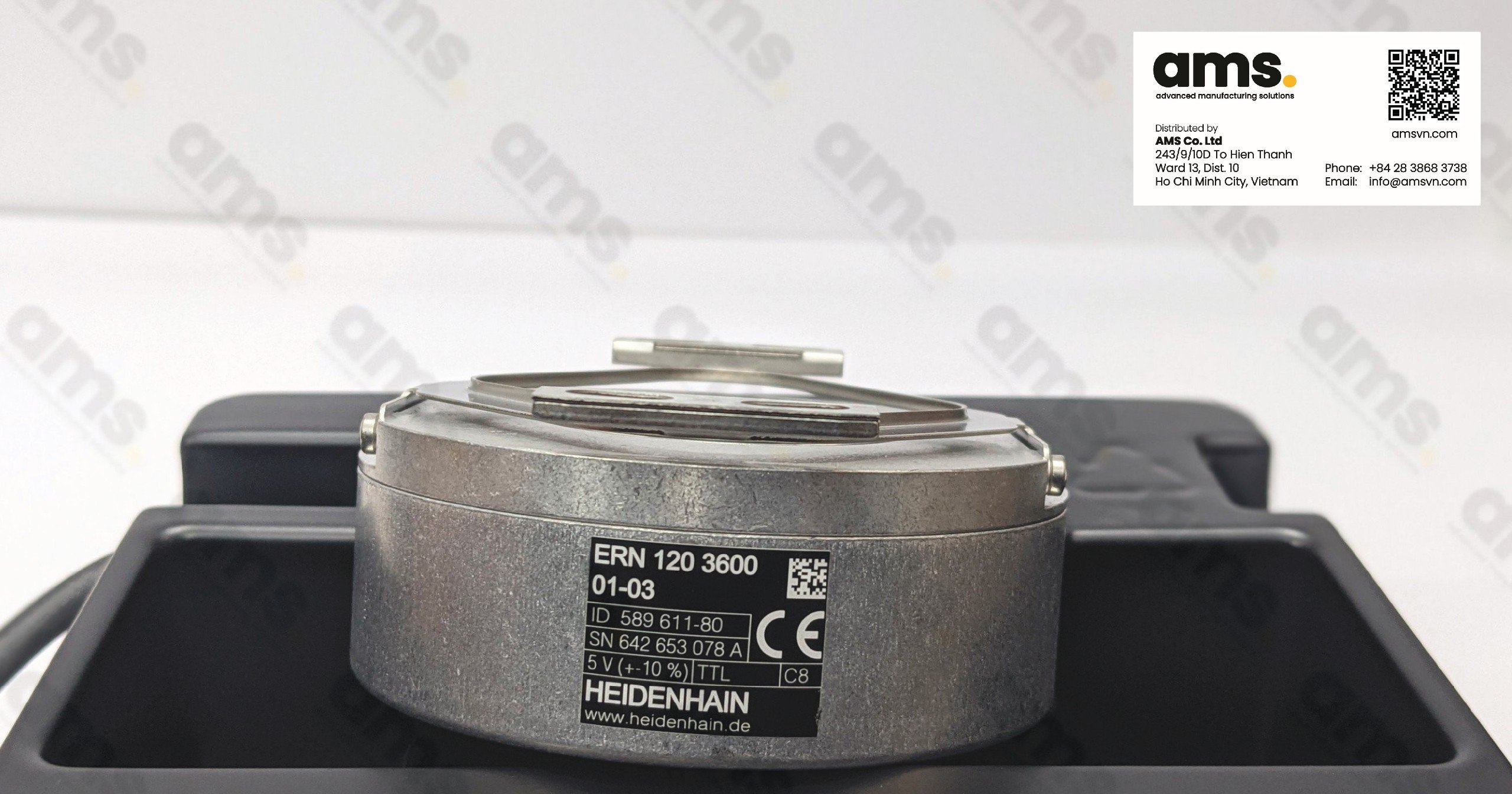

Incremental rotary encoder - ERN 120 , ID 589611-80Incremental rotary encoder with integral bearing for mounting by stator coupling
- Very high axial tolerance of up to ±1.5 mm
- Hollow through shaft in up to Ø 50 mm
- Positioning accuracy of down to ±16"
- Max. operating temperature: 100 °C
- Interfaces: 1 VPP, TTL, and HTL
- Housing diameter ≈ 87 mm

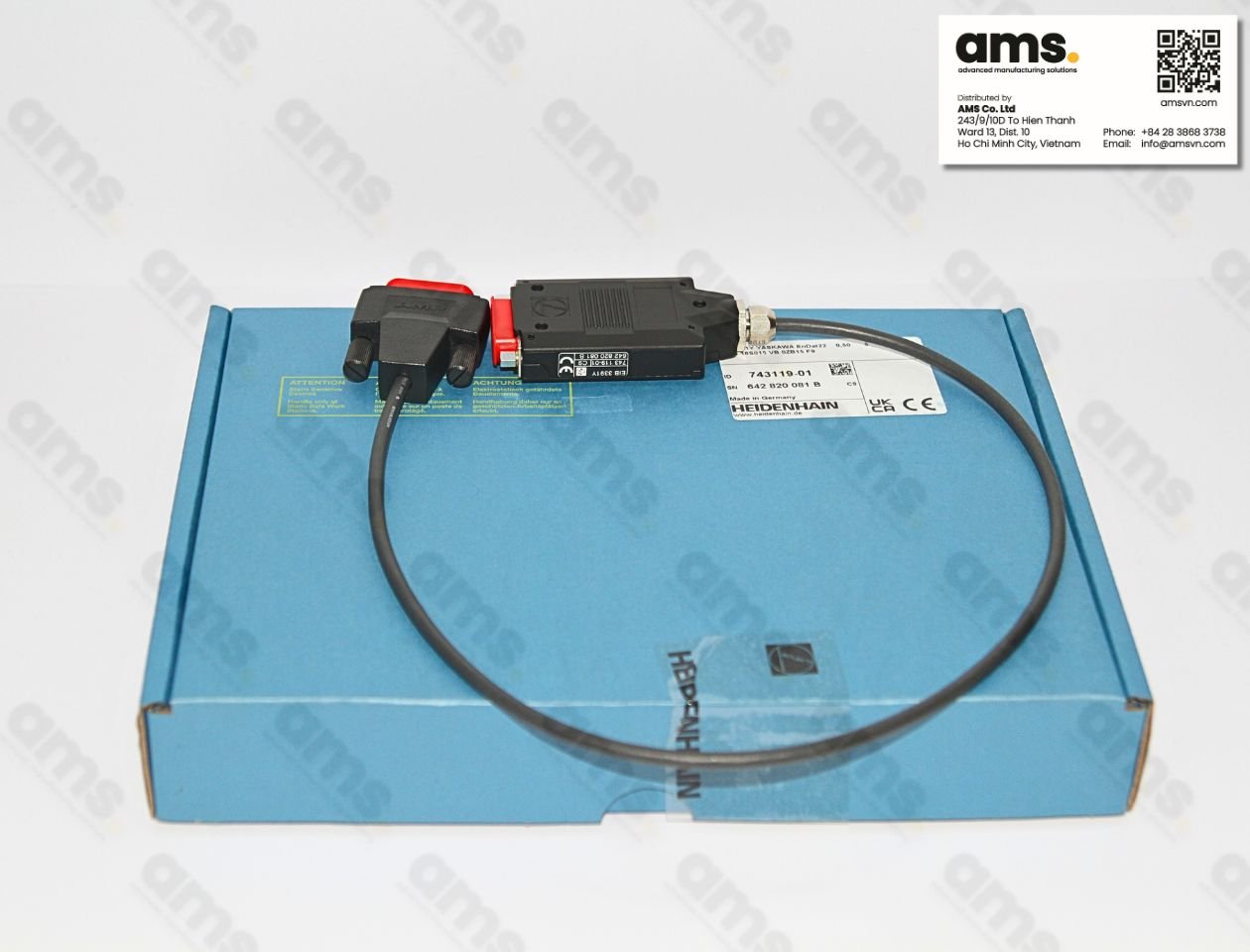

External Interface Box - EIB 3391Y, ID 743119-01Incremental rotary encoder with integral bearing for mounting by stator coupling
- Connection of encoders with the EnDat 2.2 interface to downstream electronics from Siemens, Fanuc or Yaskawa
- Siemens: housing version and cable version
- Fanuc: cable version
- Yaskawa: cable version
- Functional safety is possible

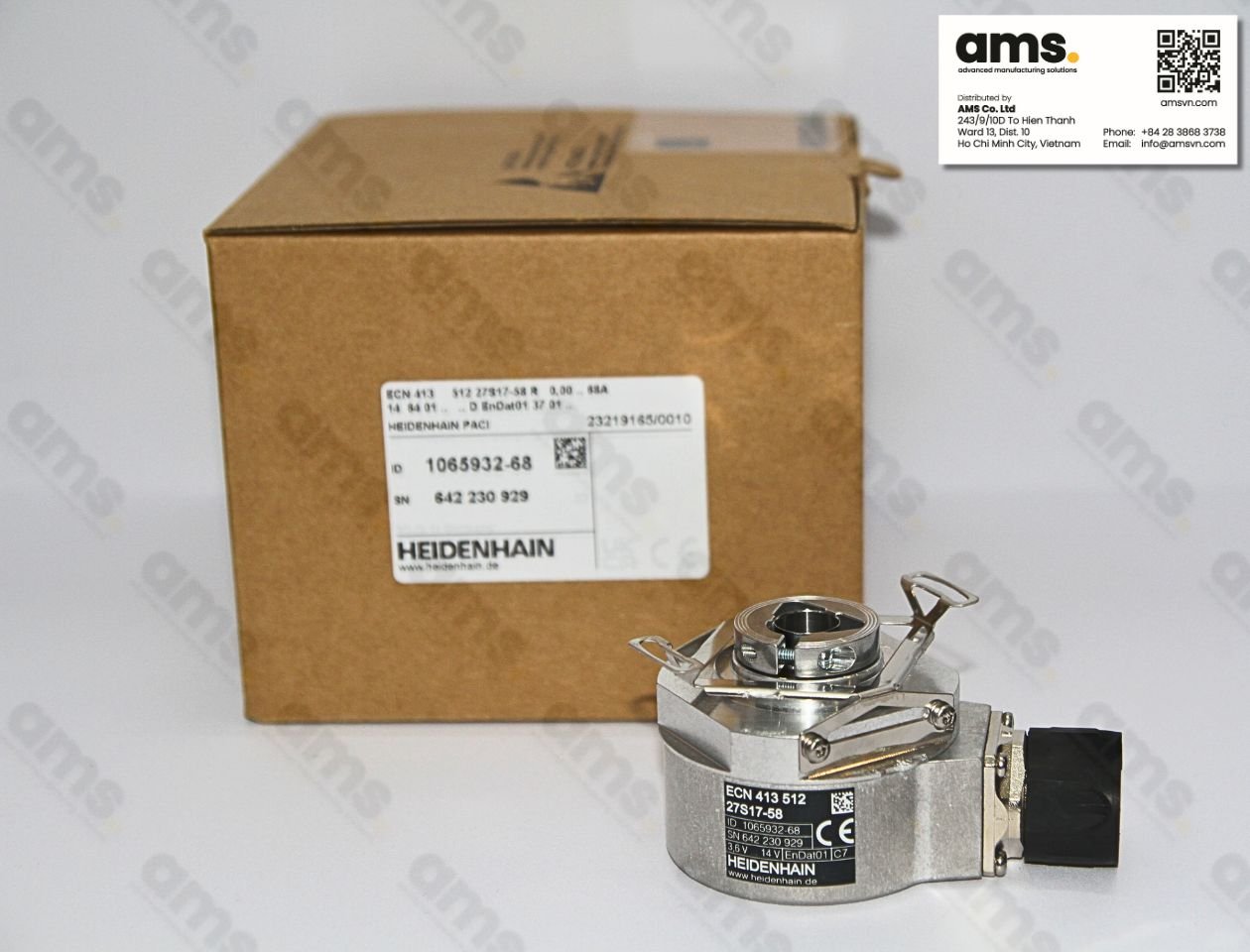

Rotary encoder - ECN 413, ID 1065932-68Rotary encoder with integral bearing.
- Very high axial tolerance of up to ±1 mm or ±1.5 mm
- Blind hollow shaft, hollow through shaft, or tapered shaft
- Very high positioning accuracy of down to ±20"
- 33 554 432 positions/rev.
- Multiturn functionality for up to 4096 revolutions
- Max. operating temperature: 100 °C
- Interfaces: EnDat, Fanuc, SSI and DRIVE-CLiQ
- Housing diameter ≈ 56 mm

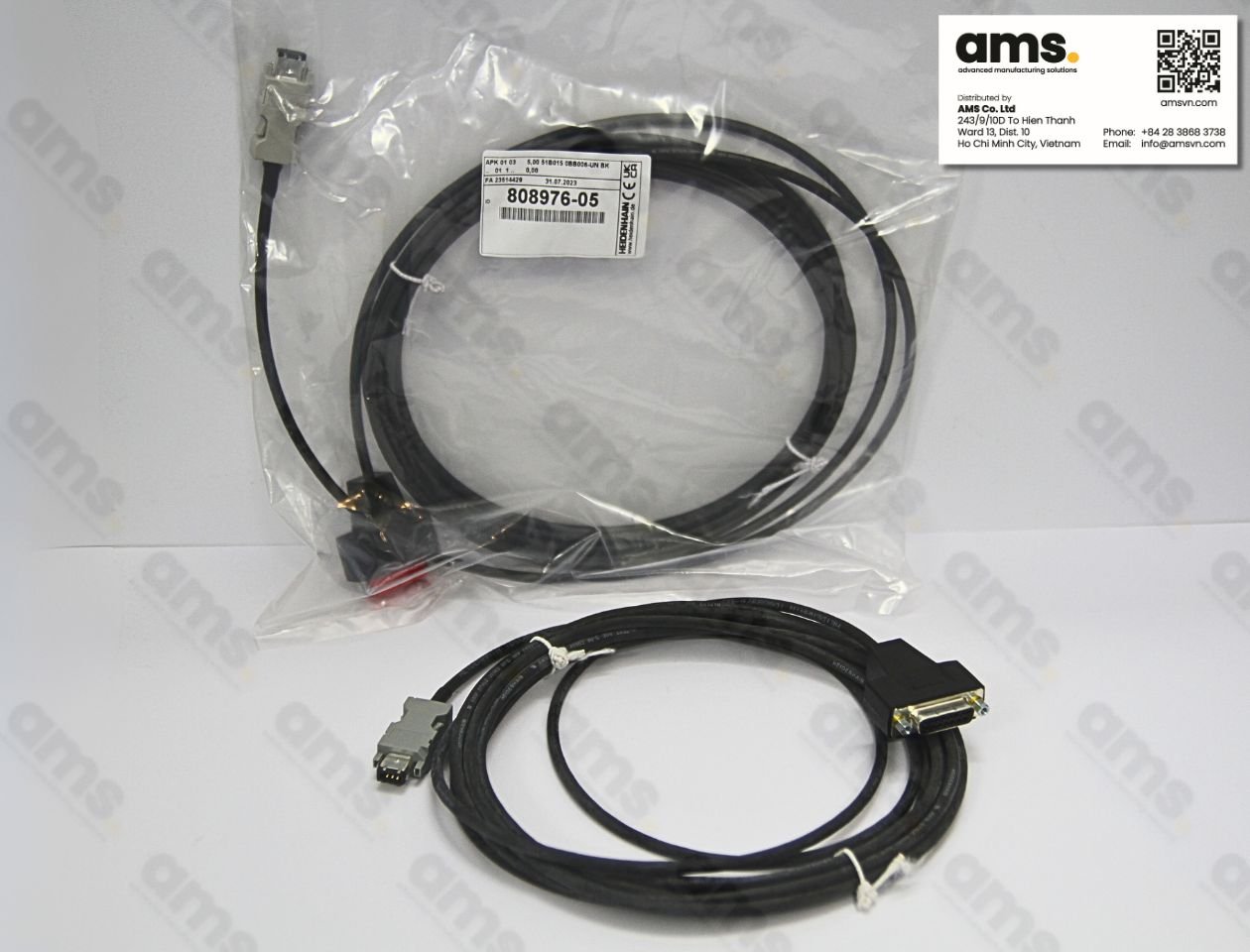

Adapter cable - ID 808976-05
- Heidenhain cables in conjunction with the given encoders, are deployed in a wide range of industrial production applications, as well as in applications for the medical technology field, metrology laboratories and positioning devices.
- The requirements for the cables vary based on the type of application: machine tools, electronics industry, metrology, automation technology,....

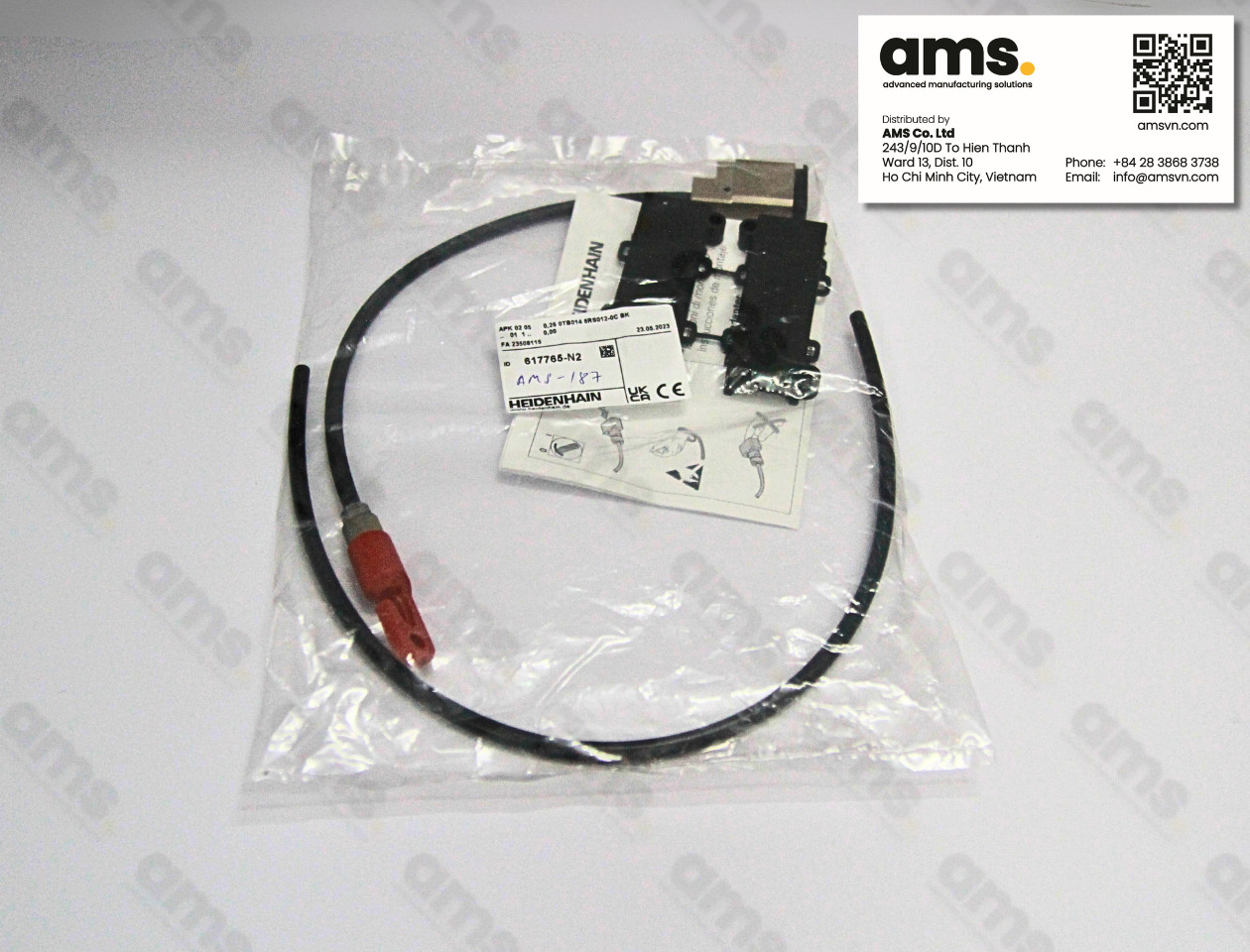

Adapter cable - ID 617765-N2
- Heidenhain cables in conjunction with the given encoders, are deployed in a wide range of industrial production applications, as well as in applications for the medical technology field, metrology laboratories and positioning devices.
- The requirements for the cables vary based on the type of application: machine tools, electronics industry, metrology, automation technology,....

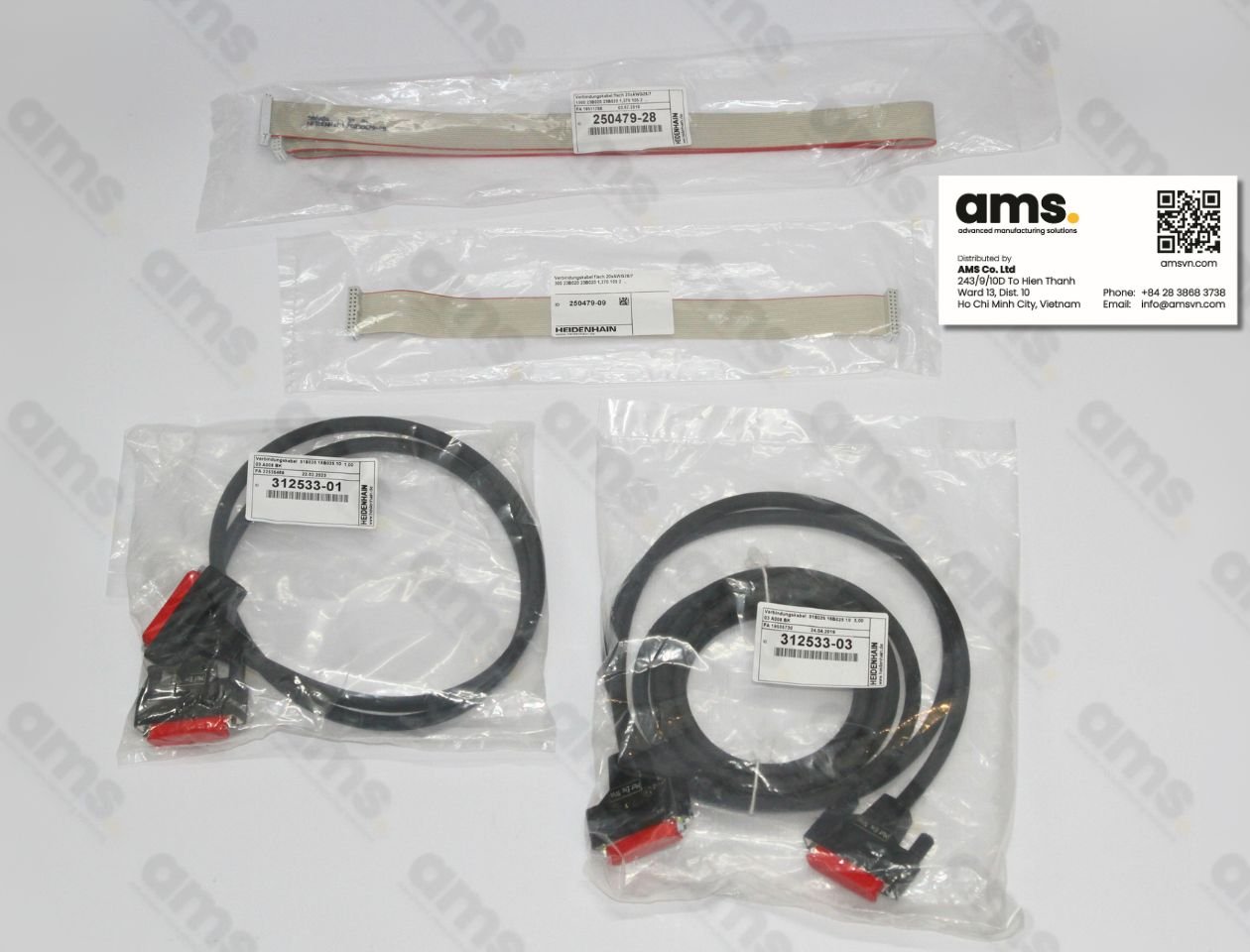

Connecting cable - ID 312533-03
- Heidenhain cables in conjunction with the given encoders, are deployed in a wide range of industrial production applications, as well as in applications for the medical technology field, metrology laboratories and positioning devices.
- The requirements for the cables vary based on the type of application: machine tools, electronics industry, metrology, automation technology,....
Connecting cable - ID 312533-01
- Heidenhain cables in conjunction with the given encoders, are deployed in a wide range of industrial production applications, as well as in applications for the medical technology field, metrology laboratories and positioning devices.
- The requirements for the cables vary based on the type of application: machine tools, electronics industry, metrology, automation technology,....
Connecting cable flat - ID 250479-28
- Heidenhain cables in conjunction with the given encoders, are deployed in a wide range of industrial production applications, as well as in applications for the medical technology field, metrology laboratories and positioning devices.
- The requirements for the cables vary based on the type of application: machine tools, electronics industry, metrology, automation technology,....
Connecting cable flat - ID 250479-09
- Heidenhain cables in conjunction with the given encoders, are deployed in a wide range of industrial production applications, as well as in applications for the medical technology field, metrology laboratories and positioning devices.
- The requirements for the cables vary based on the type of application: machine tools, electronics industry, metrology, automation technology,....

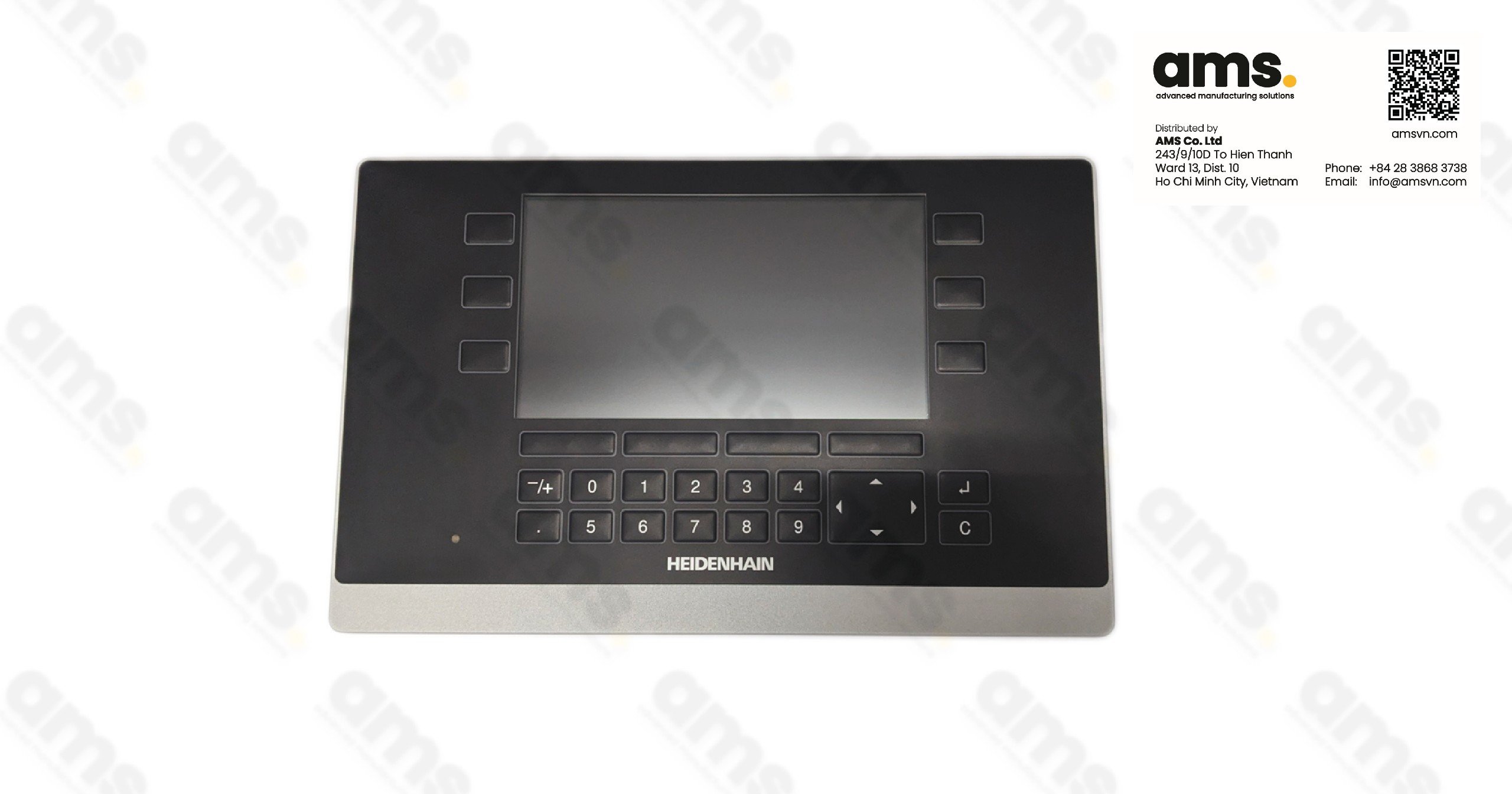

Digital readout - ND 5023, ID 1197249-01Digital readout for manual operated machine tools for turning, milling and general applications Encoder interface
- Reference-point acquisition, and tool table with tool data
- Positioning aids and block types in manual MDI mode
- Tool radius compensation

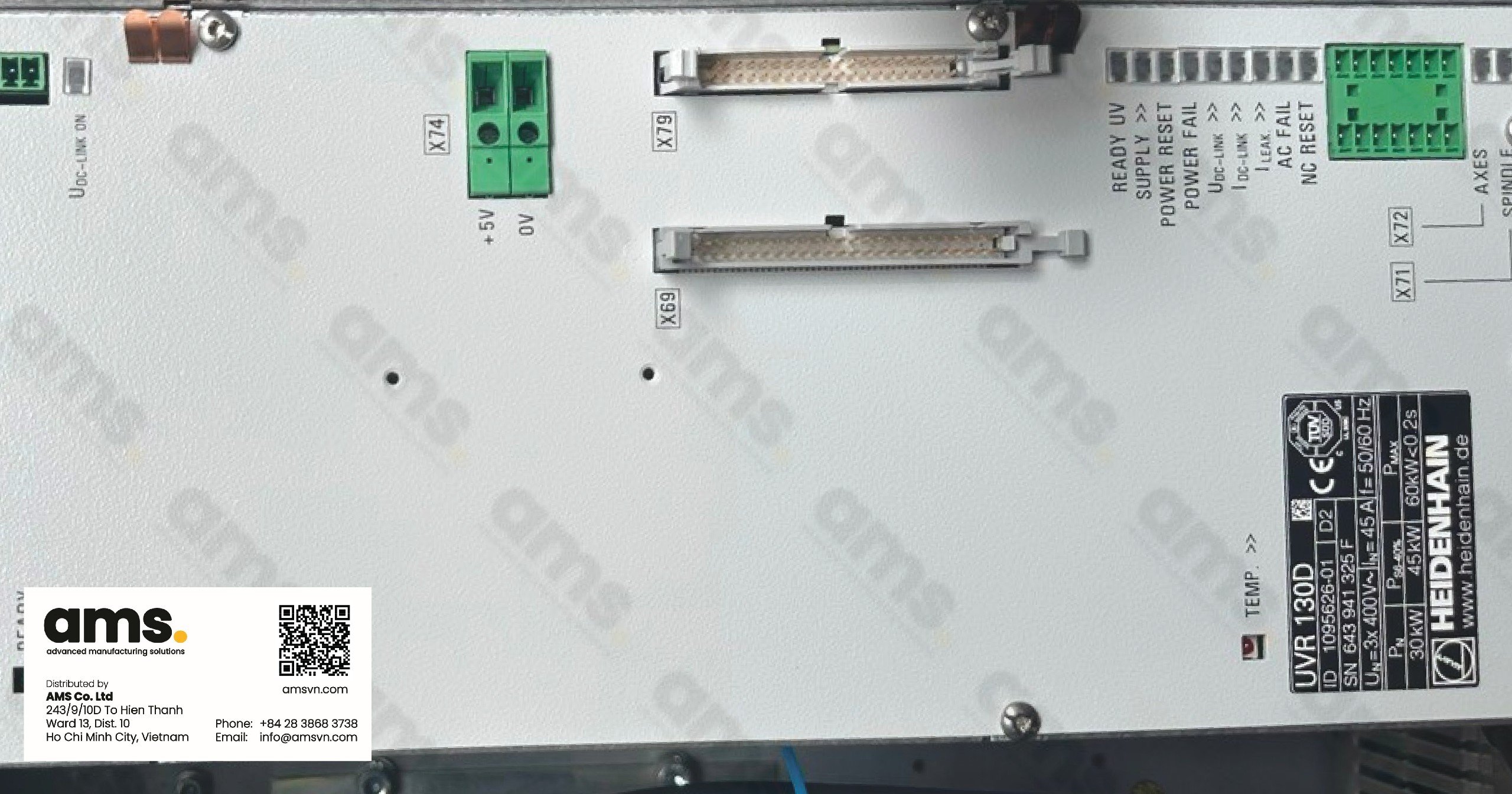

Inverter Power Supply - UVR 130D, ID 1095626-01Inverter-Power Supply regenerative With diagnostic functions and electronic ID label
- The inverter systems from HEIDENHAIN are suitable for the HEIDENHAIN controls with digital speed control.
- They are designed for operating the synchronous and asynchronous motors from HEIDENHAIN.

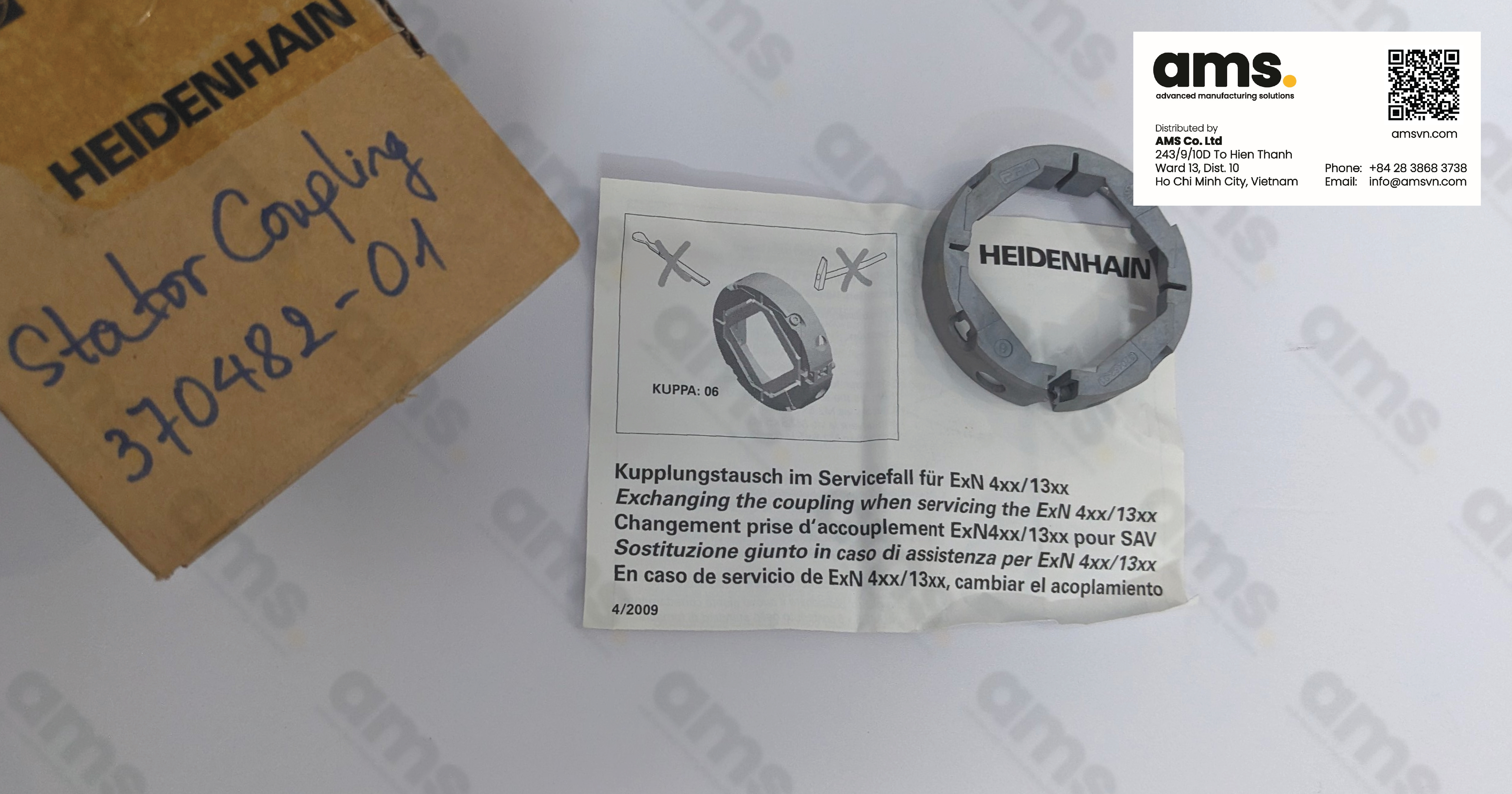

STATOR COUPLING - ID 370482-01

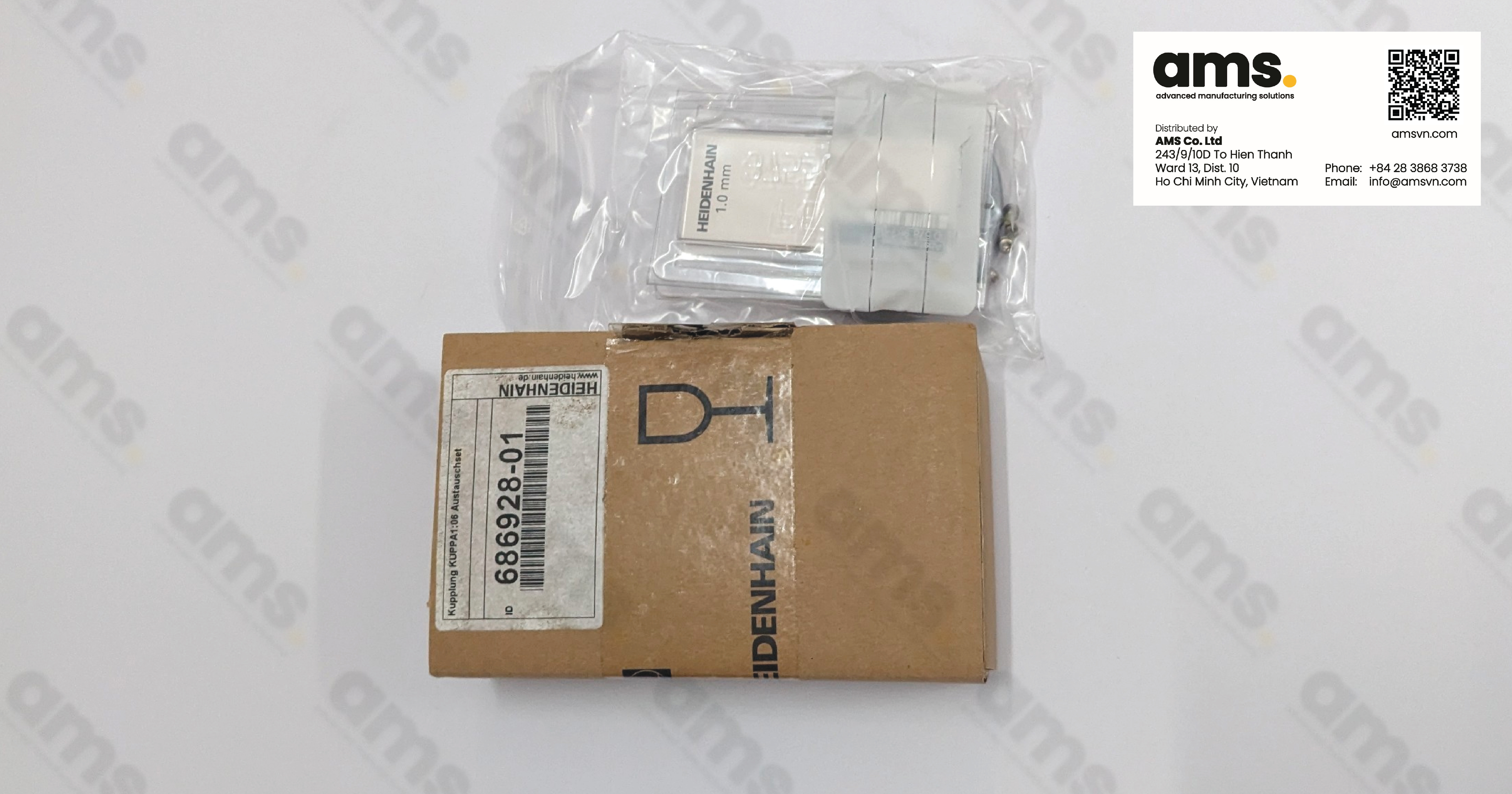

STATOR COUPLING - ID 686928-01

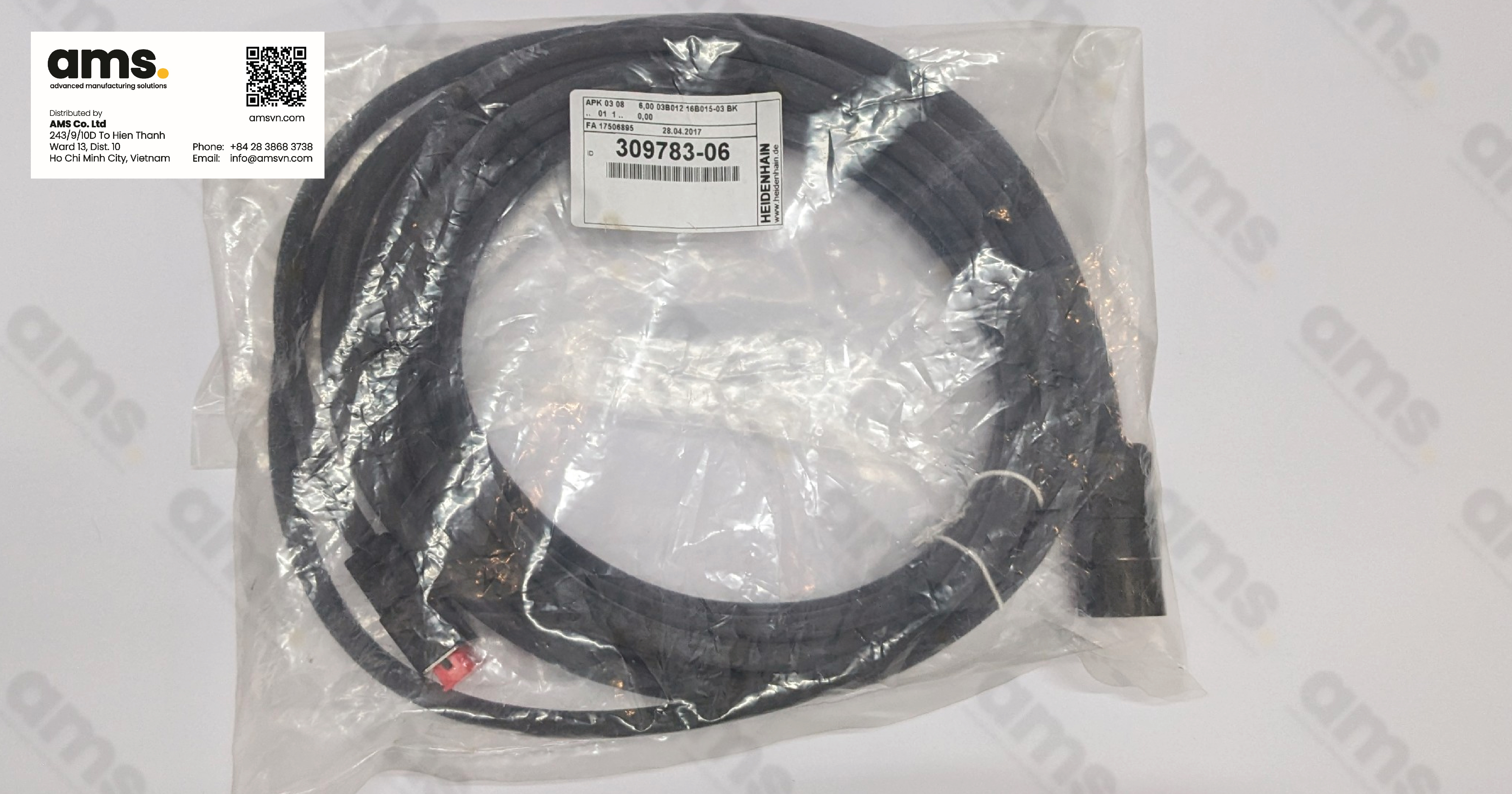

Adapter cable - ID 309783-06
- Heidenhain cables in conjunction with the given encoders, are deployed in a wide range of industrial production applications, as well as in applications for the medical technology field, metrology laboratories and positioning devices.
- The requirements for the cables vary based on the type of application: machine tools, electronics industry, metrology, automation technology,....

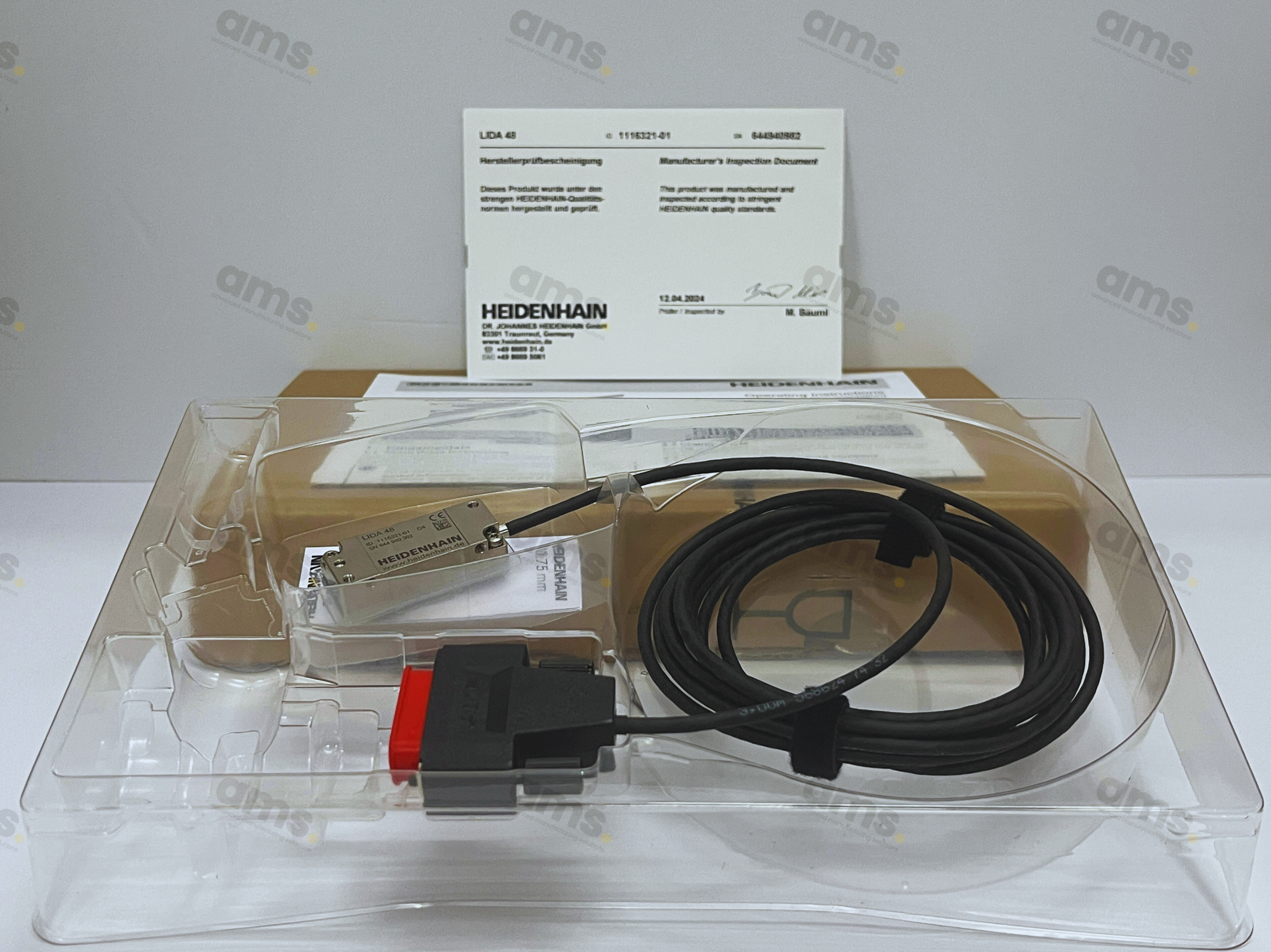

Scanning head for LIDA incremental exposed linear encoder - AK LIDA 48 - ID: 1116321-01
- AK LIDA 48 is part of LIDA 400 series.
- Measuring lengths of up to 30m.
- Limit switches.
- Selectable with scale or scale tape.
- Various mounting options.
- Resistant to contamination.
- Interfaces: 1 VPP, TTL.

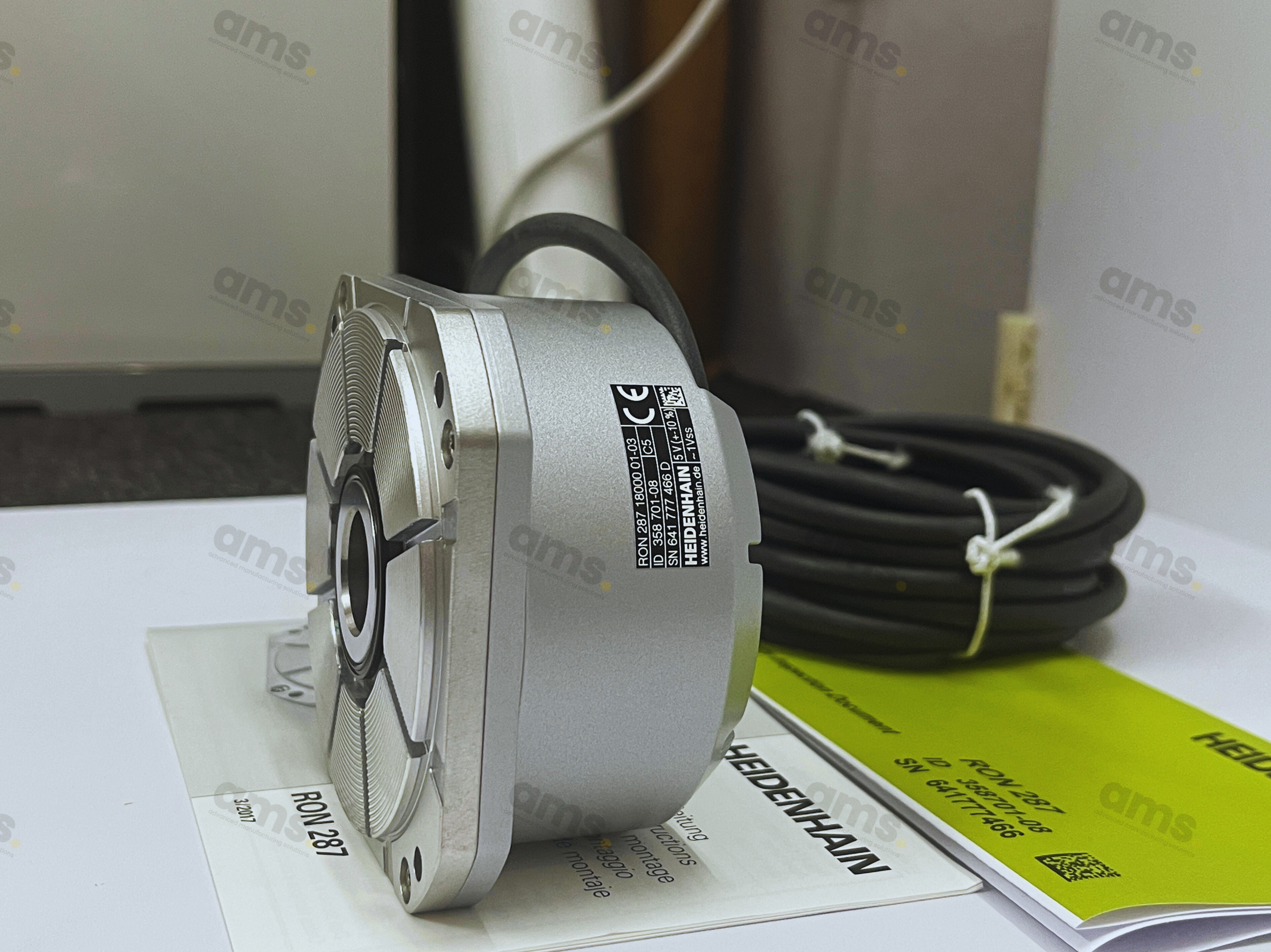

Incremental angle encoder with integral bearing and integrated stator coupling - RON 287 - ID: 358701-08
- System accuracy of ±2.5” / ±5”.
- Integrated stator coupling.
- Hollow through shaft with ∅ 20 mm.
- Signal periods per revolution: up to 180 000 with integrated interpolation.
- Interfaces: TTL, 1 VPP.

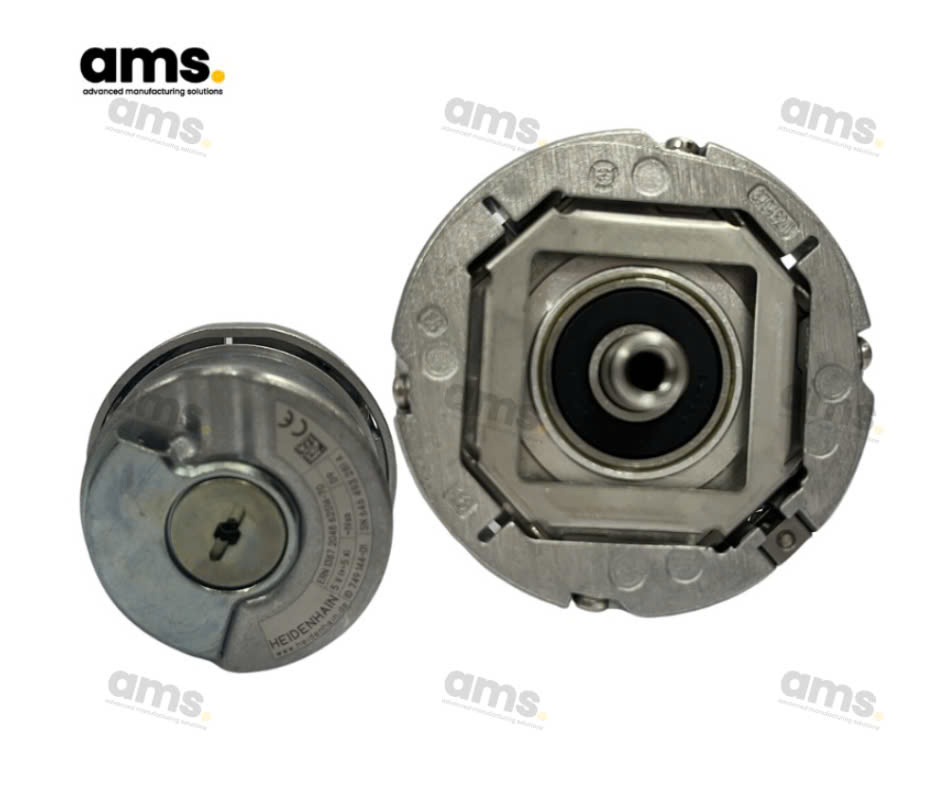

Incremental rotary encoder with integral bearing for mounting by stator coupling - ERN 1387 - ID 749144-01
- High axial tolerance of up to ±0.5 mm.
- Tapered shaft.
- Very high positioning accuracy of down to ±16".
- Max. operating temperature: 120 °C.
- Interface: 1 VPP and TTL.
- Housing diameter ≈ 56 mm.

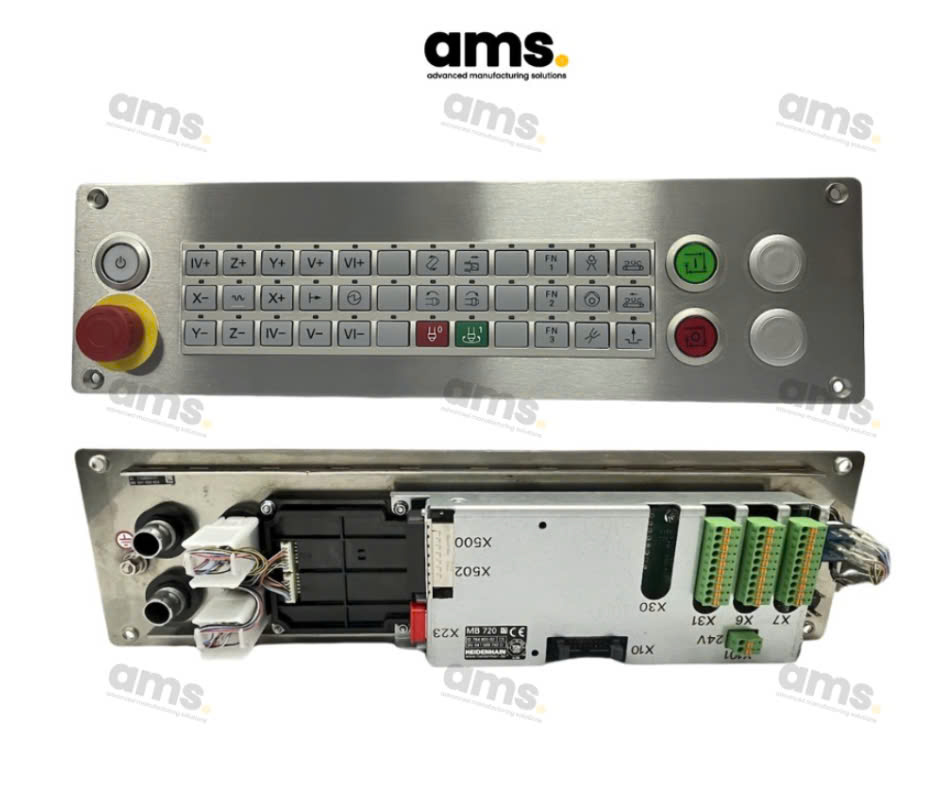

Machine operating panel - MB 720 - ID 784803-02
- This machine operating panel is used in the TNC 620 contouring control.
- TNC 620 contouring control for milling, drilling, and boring machines.

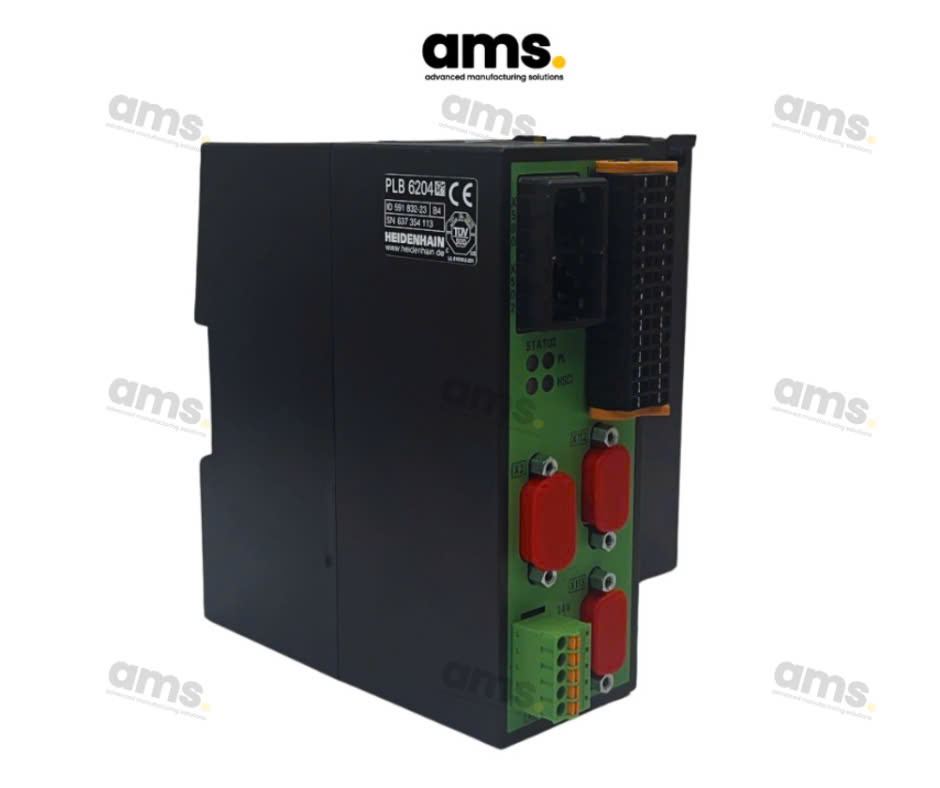

System module - PLB 6204 - ID 591832-23
- This system module is used in the TNC 620 contouring control.
- TNC 620 contouring control for milling, drilling, and boring machines.

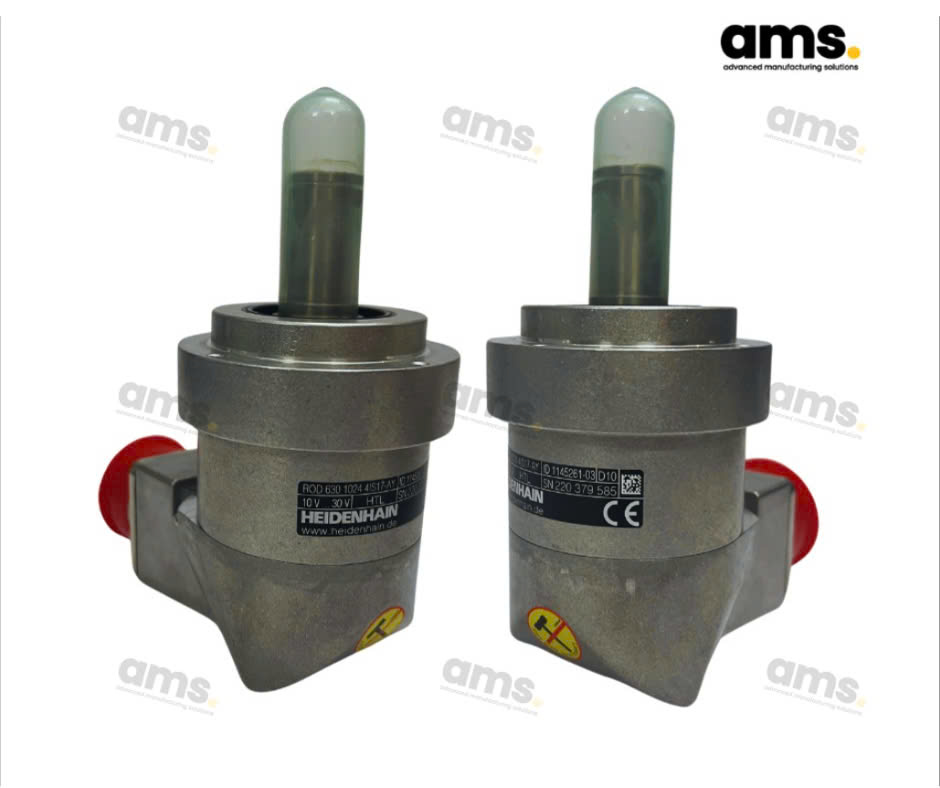

Incremental rotary encoder with integral bearing - ROD 630 - ID 1145261-03
- Solid shaft for separate shaft coupling.
- Positioning accuracy of down to ±13".
- Up to 5000 signal periods per revolution.
- Max. operating temperature: 85 °C.
- Protection rating: IP66.
- Interfaces: HTL and TTL.
- Housing diameter ≈ 66 mm.

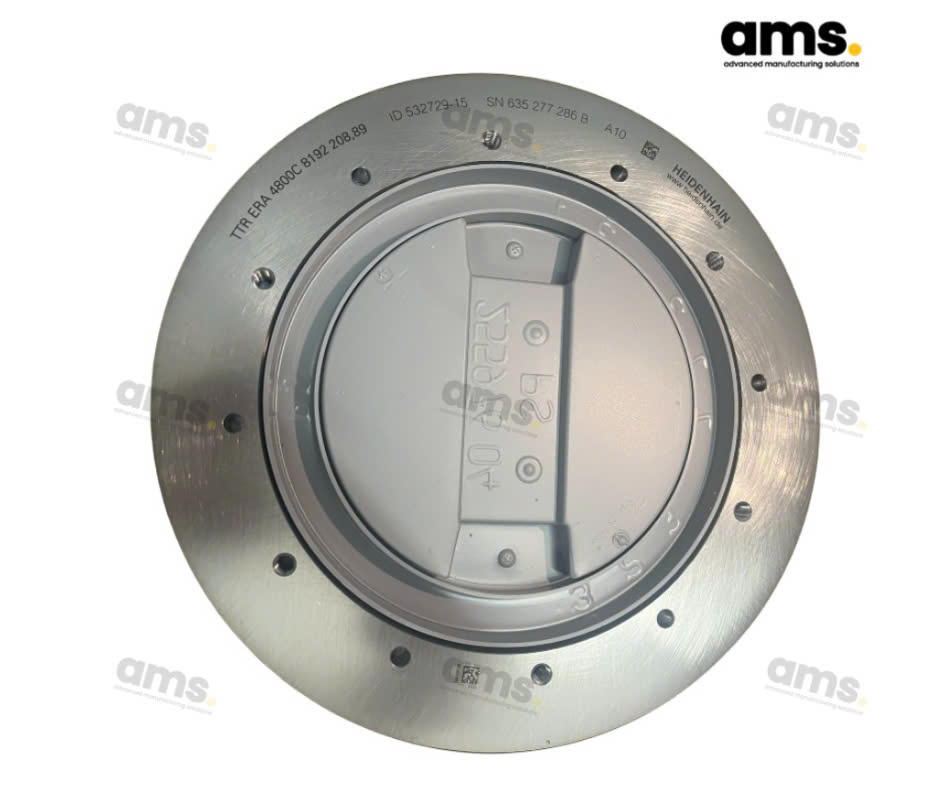

Scale drum for incremental modular angle encoder - TTR ERA 4800C - ID 532729-15
- Very high accuracy and excellent signal quality.
- Steel scale drum with three-point centering or centering collar.
- Graduation accuracy: ±1.7” to ±5”.
- Signal periods: 3000 to 52 000.
- Diameters: 76 mm to 560 mm.
- Interface: 1 VPP.
