Angle Measurement with HEIDENHAIN Rotary Encoder

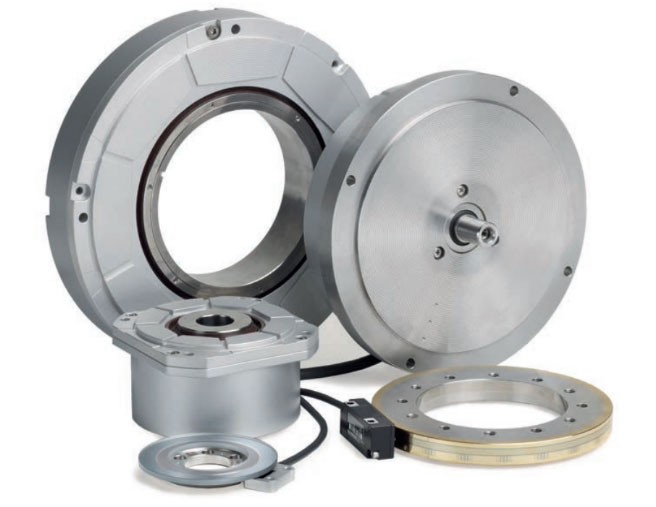

1. Angle Encoders

Encoders play a crucial role in machine tools, delivering vital positional feedback to the control system and influencing the speed, precision, and consistency of operations. Linear, rotary, and angle encoders fulfill distinct requirements, such as directional diversity and precision specifications. Encoders can be categorized based on how they interact with light or variations in resistance.

HEIDENHAIN angle encoders are characterized by high accuracy values in the range of angular seconds and better.

These devices are used in applications such as rotary tables and swivel heads of machine tools, indexing heads, high precision angle measuring tables, precision devices in angular metrology, antennas and telescopes.

• Line counts: typically 9000 to 180000
• Accuracy: from ±5" to ±0.4"
• Measuring steps: as fine as 0.00001° or 0.036" (incremental) or 29 bits, i.e., approx. 536 million positions per revolution (absolute)

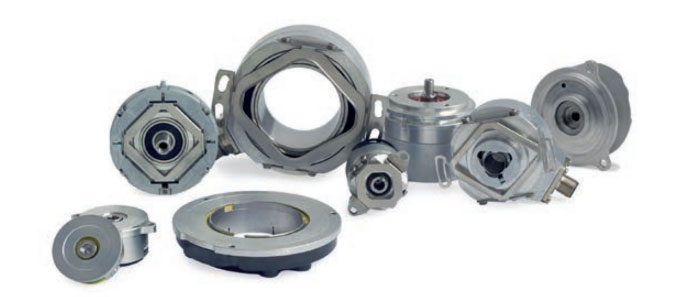

2. Rotary Encoders

Rotary encoders from HEIDENHAIN serve as measuring sensors for rotary motion, angular velocity and, when used in conjunction with mechanical measuring standards such as lead screws, for linear motion. Application areas include electrical motors, machine tools, printing machines, woodworking machines, textile machines, robots, elevators and handling devices, as well as various types of measuring, testing and inspection devices.

• Line counts: typically 16 to 5000
• Accuracy grades: to ±10" (depending on the line count, corresponding to ±1/20 of the grating period)
• Measuring steps: as fine as 0.00001°

Particularly for photoelectric rotary encoders, the high quality of the sinusoidal incremental signals permits high interpolation factors for digital speed control.

3. Mounting Variants

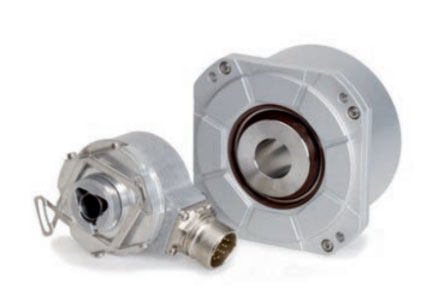

In angle encoders and rotary encoders with integral bearing and stator coupling, the graduated disk of the encoder is connected directly to the shaft to be measured. The scanning unit is guided on the shaft via ball bearings, supported by the stator coupling.

As a result, during angular acceleration of the shaft, the stator coupling must absorb only that torque resulting from friction in the bearing. These angle encoders therefore provide excellent dynamic performance. Thanks to the stator coupling, the system accuracy includes the error of the shaft coupling.

Other benefits of the stator coupling are:

• Simple mounting
• Short overall length
• High natural frequency of the coupling
• Hollow through shaft is possible

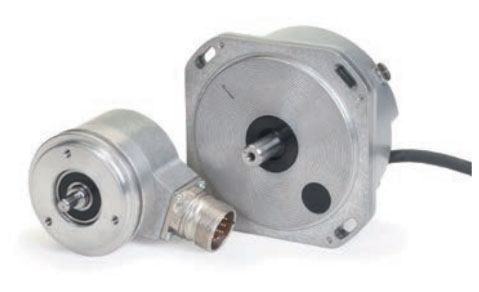

Angle encoders and rotary encoders with integral bearings for a separate shaft coupling are designed with a solid shaft. The recommended coupling to the measured shaft compensates radial and axial tolerances. Angle encoders for separate shaft couplings permit higher shaft speeds.

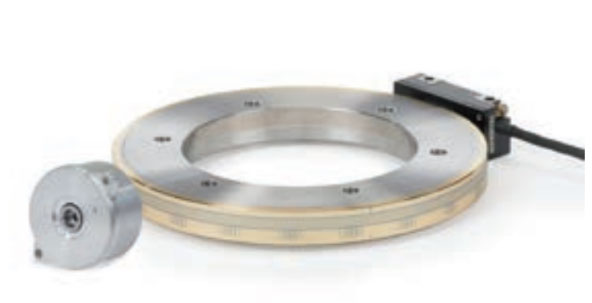

Angle encoders and rotary encoders without integral bearing operate without friction. The two components—the scanning head and the scale disk, drum, or tape—are adjusted to each other during assembly. The benefits are:

• Little space required
• Large hollow-shaft diameters
• High shaft speeds possible
• No additional starting torque

4. Classification: Incremental and Absolute

Absolute angle encoders and rotary encoders require no previous traverse to provide the current position value.

Single Turn encoders provide the current angular position value within one revolution, while multiturn encoders can additionally distinguish between revolutions. The position values are output, for example, over the purely serial, bidirectional EnDat interface. It enables automatic configuration of the higher-level electronics and provides monitoring and diagnostic functions.

Under the designation functional safety, HEIDENHAIN offers encoders with purely serial data transmission as single-encoder systems for safety-related machines and systems. The two measured values are already formed independently of each other in the encoder, and are transmitted to the safe control via the data interface.

With incremental angle encoders and rotary encoders, the current position is determined by starting at a reference point and counting measuring steps, or by subdividing and counting signal periods. Incremental encoders from HEIDENHAIN feature reference marks to reestablish the reference point.

Incremental rotary encoders with commutation signals provide the angular shaft position value—without requiring previous traverse—with sufficient accuracy to correctly control the phases of the rotating field of a permanent-magnet three-phase motor.

Sealed angle encoders		Series
With integral bearing and integrated stator coupling	Absolute (singleturn)/Incremental	RCN, RON, RPN
With integral bearing	Absolute (singleturn)/Incremental	ROC, ROD, RON
Angle encoder modules	With precision bearings	MRP, SRP
Modular angle encoders
Without integral bearing, with optical scanning	Absolute (singleturn)/Incremental	ECA, ERA, ERO, ERP
Without integral bearing, with magnetic scanning	Absolute (singleturn)/Incremental	ECM, ERM
Rotary encoders
With integral bearing, for mounting via stator coupling	Absolute (singleturn/multiturn) Incremental	ECN, EQN ERN
With integral bearing, for separate shaft coupling	Absolute (singleturn/multiturn) Incremental	ROC, ROQ ROD
Without integral bearin	Absolute (singleturn/multiturn) Incremental	ECI, EQI, EBI ERO

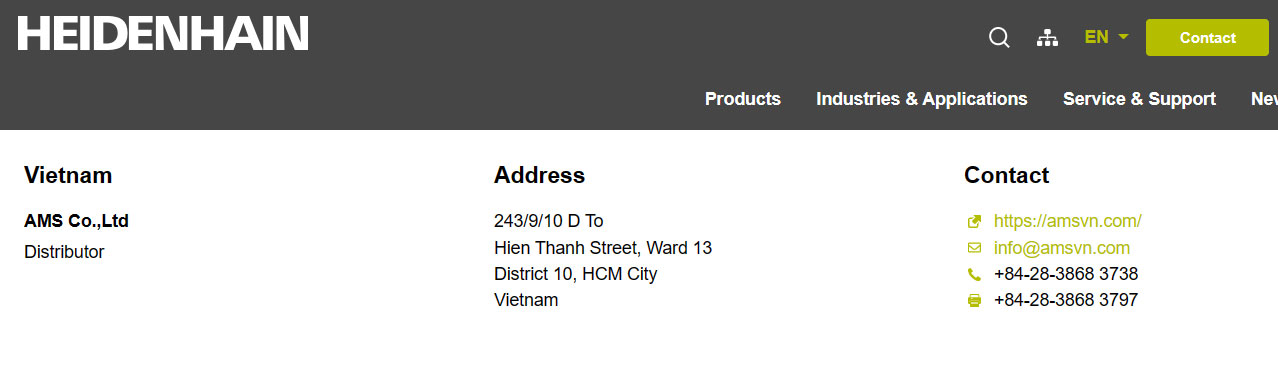

AMS Company LimitedHEIDENHAIN's Exclusive Distributor in Vietnam
